- Electric stove -
- Wall positioning -

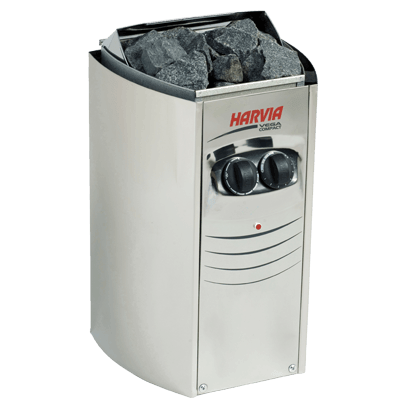

Harvia Vega Compact is a powerful package designed for a small sauna. Vega Compact is easy to use thanks to its ergonomically placed controls on the top of the stove. Vega Compact can be installed very low on the sauna wall so as to provide sufficient heat for the lower benches.
The Vega Compact stove is easy to install. Just install the base on the wall, lift the stove at the support and fix it with a screw. The stove is made of stainless steel. The Vega Compact is equipped with an integrated control unit.
| Type | Electric stove | ||
|---|---|---|---|
| Power | 3,5 kW | ||
| Recommended volume (min-max) | 2 - 4,5 m3 | ||
| Min. Sauna height | 170 cm | ||
| Dimensions (L x p x H) | 280 x 295 x 505 mm | ||
| Weight (without stones) | 7 kg | ||
| Max. capacit | 10 kg | ||
| Electricity supply | 230 V 1N~ / 400 V 2N~ | ||
| Cables | 3 x 2,5m2 / 4 x 1,5m2 | ||
| Fuses | 1 x 16A / 2x 10A | ||
| Safety distance : Inf. platform Wall Ceiling Floor |
30 mm 20 mm 900 mm 80 mm |
||
*All content (texts, images, descriptions, technical data) is non-contractual and therefore subject to change without notice.
