Product Sheet Documents

Silent Jet Fi

A heat pump that knows how to be discreet
for swimming pools up to
jusqu’à 130 m3
operates
down to -7°
7 versions
available

A reduced noise level never reached thanks to a concentrate of innovative technologies

Dressed in a sleek-looking casing, the Silent Jet Fi flaunts its cutting edge technologies right next to the swimming pool in full view of all: rear blowing and Full Inverter technology turn it into the quietest heat pump on the market.

Full Inverter technology translates into significant energy savings of up to 35% compared to an on/off heat pump. This is enabled through functionalities such as soft-start and an operating speed which continuously adapts itself according to the pool set temperature. This cutting-edge technology also means that the Silent Jet Fi is extremely quiet since its compressor and fan rarely turn at full speed.

Add to this a ventilation to the rear and the sound volume of this heat pump is further reduced to actually blend into the natural outside noise.

Discreet in its operation, the Silent Jet Fi fits perfectly around the pool and its contemporary design brings a touch of elegance to the outdoor space.

advantages

  • + Full Inverter +35% energy savings
  • + Silence level never attained
  • + Soft start
  • + Salt treatment compatible
  • + Twisted Tech © Titanium heat exchanger
warranties
Heat Pump
Compressor
Titanium coil (against corrosion)

full inverter technology +35% energy savings

Popular in the domestic heating and air conditioning sectors, Full Inverter technology adjusts precisely the fan and the compressor, turning the heat pump into a smart pump

Unlike a traditional heat pump, the Full Inverter compressor starts up gradually. If the set temperature is far from the swimming pool actual temperature, an automatic regulator boosts the heat pump’s capacity for a quick rise in temperature. During swimming season, and to maintain the set temperature, the heat pump operates at reduced power.

This constant operation means that the Full Inverter heat pump operates in a more stable way and preserves the compressor from unwanted starts and stops, resulting in energy savings of over 35%.

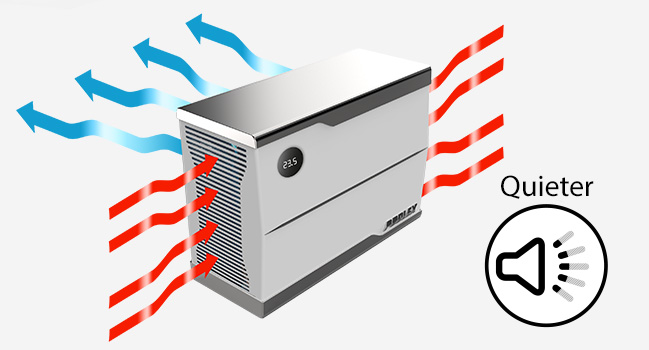

New rear ventilation technology

With a vent blowing to the rear of the heat pump, the Silent Fi operates at an unmatched level of silence.

The added comfort brought by this type of ventilation, away from everything, means that the heat pump no longer requires hiding in a technical shelter, but would rather be installed openly around the swimming pool.

Sleek contemporary design

Dressed in a sleek casing, the Silent Jet Fi heat pump not only blends within the decor, but also adds a modern touch to the outside architecture.

Model Silent Jet Fi 60 Silent Jet Fi 90 Silent Jet Fi 120 Silent Jet Fi 160 Silent Jet Fi 210 Silent Jet Fi
160 tri
Silent Jet Fi
210 tri
Pool volume (m3) From 20 to 41 From 30 to 56 From 35 to 70 From 47 to 88 From 70 to 130 From 47 to 88 From 70 to 130
Condition:
Air 26°C
Water 26°C
Hygro 80%
Max. power output (kW) 7.8 12.5 15.5 21.5 27 22 27
Min. power output (kW) 2.46 2.2 2.4 3.3 4.3 3.3 4.3
COP 13.5~6.1 16.5~6.1 16.6~6.5 16.7~6.2 16.5~6.3 17.1~6.6 16.5~6.3
Condition*:
Air 15°C
Water 26°C
Hygro 70%
Max. power output (kW) 6.1 9.05 11.5 16 20.5 16 20.5
Min. power output (kW) 1.4 1.6 1.9 2.48 3.2 2.6 3.2
COP 7.5~4.7 7.2~4.7 7.6~4.9 7.7~4.8 7.8~4.7 7.9~5.0 7.8~4.7
Power supply Mono 230V/50Hz Tri 415V/50Hz
Heating temperature range 20°C ~ 40°C
Cooling temperature range 8°C ~ 28°C
Operating range -7°C ~ 43°C
Flow (m3/h) 2~4 4~6 5~7 7~9 9~11 7~9 9~11
Refrigerant R32
Packaging dimensions (mm) 944x420x802 1043x440x802 1147x454x882 1279x484x972
Dimensions (mm) 870x355x622 975x376x622 1040x406x722 1060x436x822
Net weight (kg) 46 56 69 73 92 89 92
Noise level at 1 m(dB(A)) 37~49 38~50 39~51 40~52 45~56 40~52 45~56
Noise level at 10 m(dB(A)) 19~28 19~29 20~30 21~31 23~35 21~31 23~35
Compressor type Hermetic Rotary DC Inverter Compressor
Compressor brand Toshiba
Heat exchanger Twisted Tech© Titanium
Function Heating and cooling
heat pump configurator A simple tool to find the perfect heat pump for any type of swimming pool

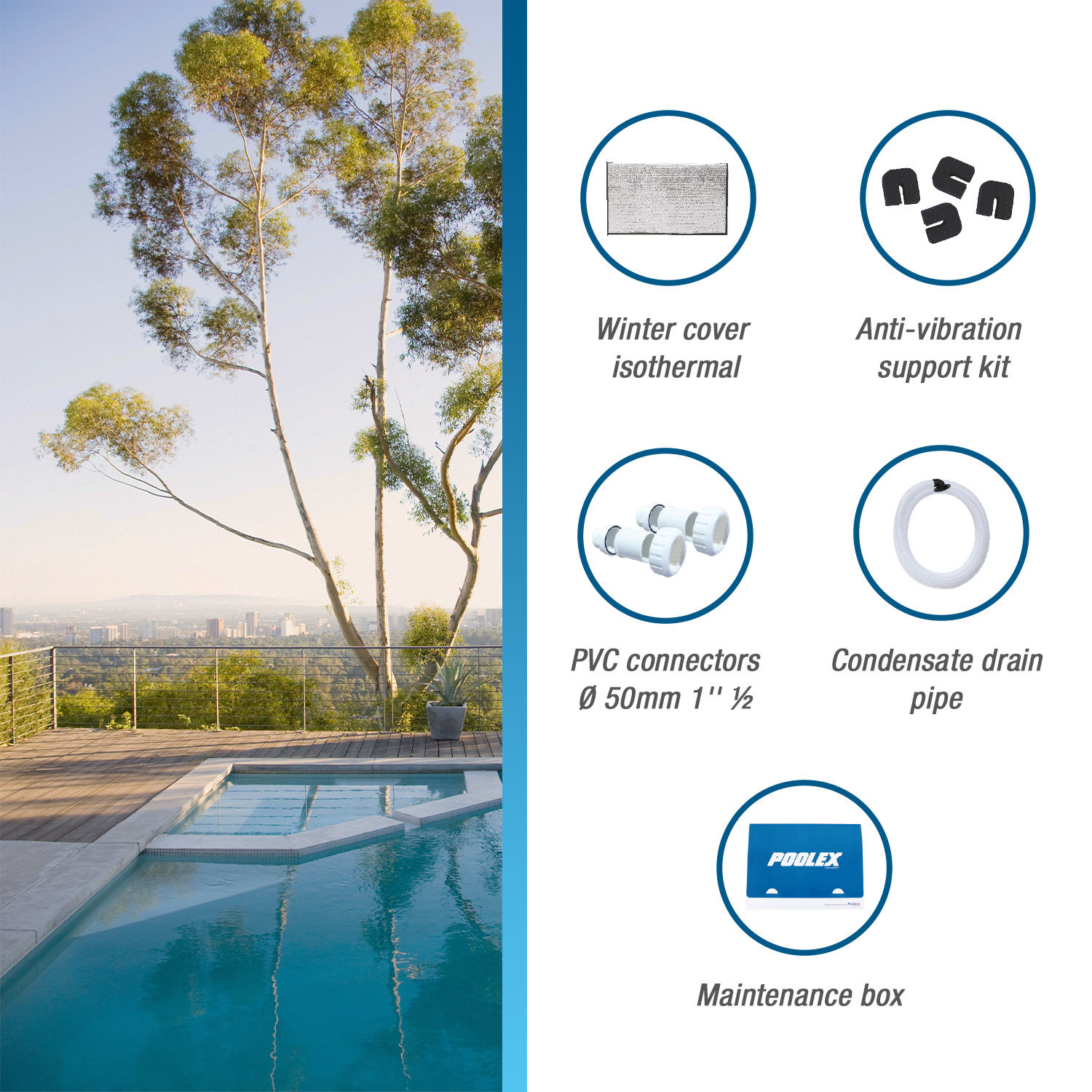

Maintenance kit including multi-language user manual
Anti-vibration support kit
PVC connectors 50mm 1" ½
Condensate discharge pipe
Isothermal winter storage cover
Delivered on a wooden pallet
