Attack / Defence
50m reach
4h autonomy
You are aware of a fire risk that can happen near you?
As a matter of fact, your swimming pool can become your best friend in the event of a fire outbreak.
When using the Pool Sam fire protection motor pump, you immediately provide yourself with a protective shield.
Pool Sam is an emergency device that uses your swimming pool water to light off small fires or limit a fire outbreak while awaiting for the firefighters.
In 2022, almost 2 millions acres went up in smoke in Europe.
In case of emergency, CALL 112. Count 15 minutes on average for the firefighters’ intervention. During this wait that can seem endless, your Pool Sam can be your shield. You can slow down the fire in its progression. You can also wet your dwelling’s walls to protect yourself from heat and smokes.
More info on: feux-foret.gouv.fr
A pool’s average volume equals 4 to 5 canadairs.
A significant amount which you can count on while waiting for the firefighters. Take your Pool Sam by the pool, immerse the suction pipe, unroll the delivery pipe and you are ready in just minutes to slow down the fire outbreak from spreading.

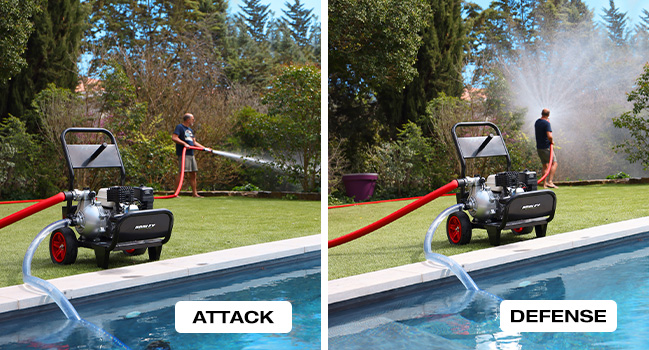

This Pool Sam fire hose comprises 2 operating modes. You can either target and stop a fire outbreak or spread water on your dwellings to protect yourself from heat and smokes when a fire is approaching.
WARNING: YOUR FIRST REFLEX MUST ALWAYS BE TO CALL EMERGENCY!

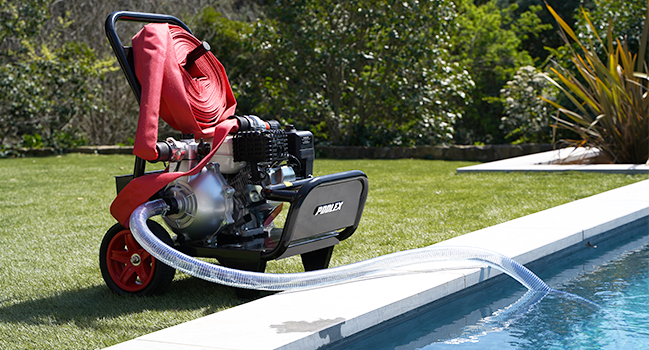

In an emergency, as a true shield companion, your Pool Sam moves around without any difficulty thanks to its carrier on wheels.
Two fixed feet at the front of the equipment ensure stability.
The suction and the delivery pipes unroll in an instant. You are ready in minutes to stop a fire outbreak and wet the area around your property.
Pool Sam is equipped with a 25m suction pipe with a spread capacity of also 25m.
Once you have called 112, quickly unroll your fire protection device. With your swimming pool volume that equals that of several canadairs, you can keep humid a radius up to 50 meters.
| Reference | PS-POOLSAM1 | |
|---|---|---|
| Capacity | 7 HP | |
| Fuel | Gas/Petrol SP95 - E10 | |
| Oil | 10W30, 10W40, 15W30, 15W40 | |
| Suction height | Up to 7m | |
| Projection height | Up to 25m (25 m beyond the hose length) | |
| Total projection capacity | 50 m | |
| Pressure/Flow at pump’s outlet | 7 bars / 16 m3/h | |
| Pressure/Flow at 25m of hose | 7 bars / 16 m3/h | |
| Autonomy | 4 hours | |
| Hose | 3 positions: Off / Attack / Defence | |
| Dimensions | 570 x 540 x 750 mm | |
| Weight | 45 kg | |
A fire protection motor pump uses a gasoline engine to create pressure and spray water over long distances, drawing from a water source like a pool. The Pool Sam model operates with a 7 HP, 4-stroke engine that can spray water up to 25 meters, covering a 50-meter radius around the pool. It includes an adjustable fire hose nozzle with two modes: a straight jet for directly targeting flames and a diffuse spray for protecting against heat and smoke. The pump provides around 7 bars of pressure, making it highly effective for controlling initial fires in gardens or wooded areas while awaiting emergency responders.
The reach of a fire pump depends on its power, pressure, and hose length. The Pool Sam, for instance, can spray water up to 25 meters, making it suitable for use in open areas or for creating a protective barrier around a home. This reach, supported by a high-pressure pump and a 16 m³/h flow rate, allows for effective coverage of areas surrounding residential properties or land.
The operating time of a fire pump depends on its fuel tank capacity. The Pool Sam has a 4-hour runtime, which is sufficient to contain a fire until emergency services arrive. Regular checks on the pump, including fuel levels, ensure it is ready for immediate use in emergencies. Additionally, routine maintenance, as recommended by NF EN 12845 standards for fire pumps, is essential to prolong its service life and reliability.
Fire hoses on motor pumps usually feature multiple spray settings to adapt to specific firefighting needs. The Pool Sam hose provides two options: a straight jet, which delivers a concentrated stream of water to attack flames, and a diffuse spray, creating a cone of protection to shield against heat and smoke. These options allow the user to choose the most effective approach depending on the fire's intensity and surrounding environment.

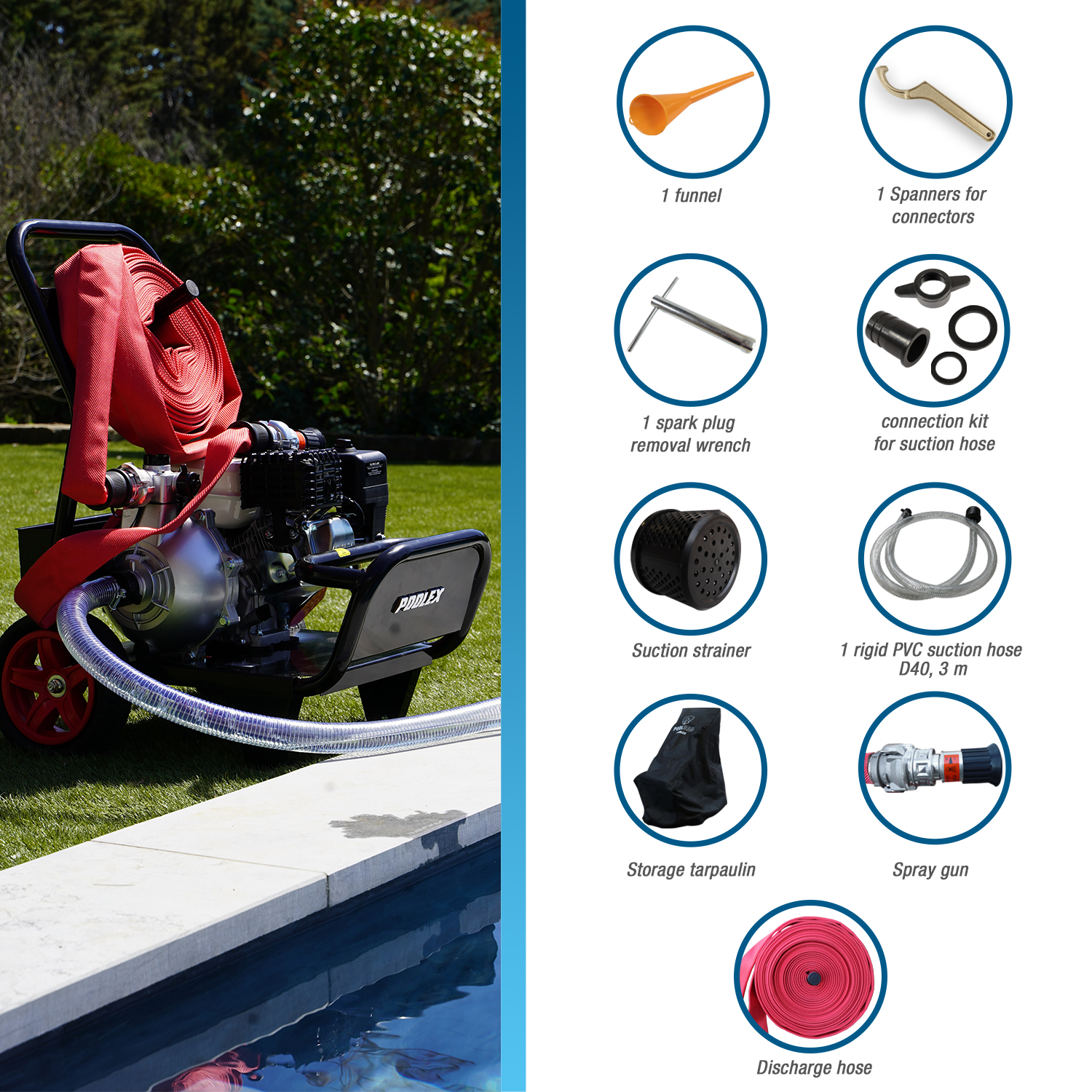

1 wrench for tightening GRF fittings
1 Spark plug removal spanner
1 funnel
Suction hose connection kit: 2 stainless steel hose clamps, 2 connectors, 4 joints
1 x 3m D40 rigid PVC suction pipe
Suction strainer
Projection hose
Storage cover
