Advantages

Why choose the Nano Action to heat up your small swimming pool

The heat pump special swimming pools up to 35m3.

Specifically designed to make life easier, the Nano Action comes equiped with 32/38 mm connectors for a quick connection to any classical filtration system.

Simply plug in your heat pump and let your swimming pool get warm.

Designed with the same specifications as a premium heat pump, it features the same efficiency in an ultra compact casing. With its light weight, easily transport it when the season is over.

Plug & Play

Thanks to its Plug & Play functionality, the Nano Action can be installed quickly by simply plugging it into a mains socket. Depending on the filtration system, it can be connected without a bypass.

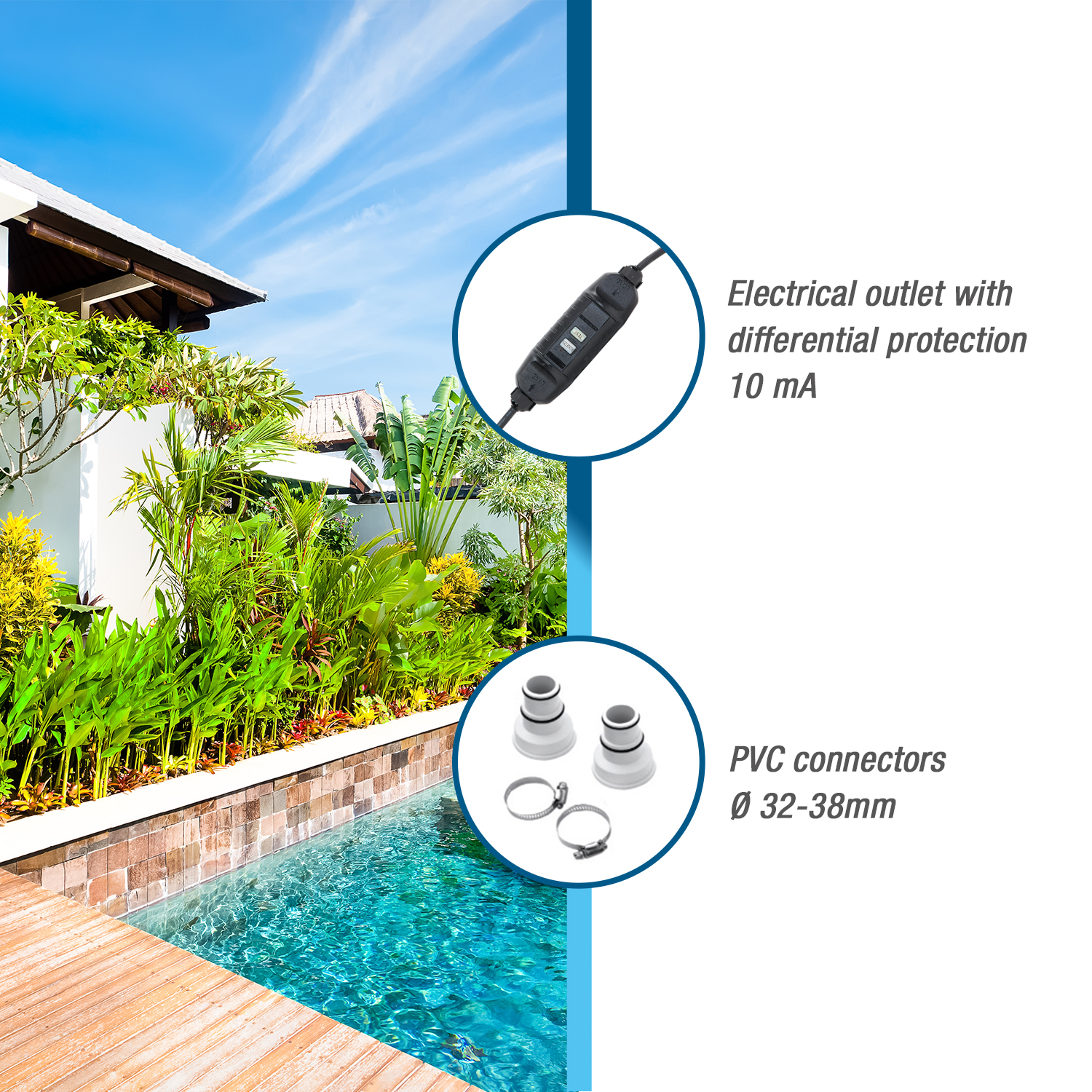

The 5-metre cable is fitted with 10 mA differential protection to ensure safe use.

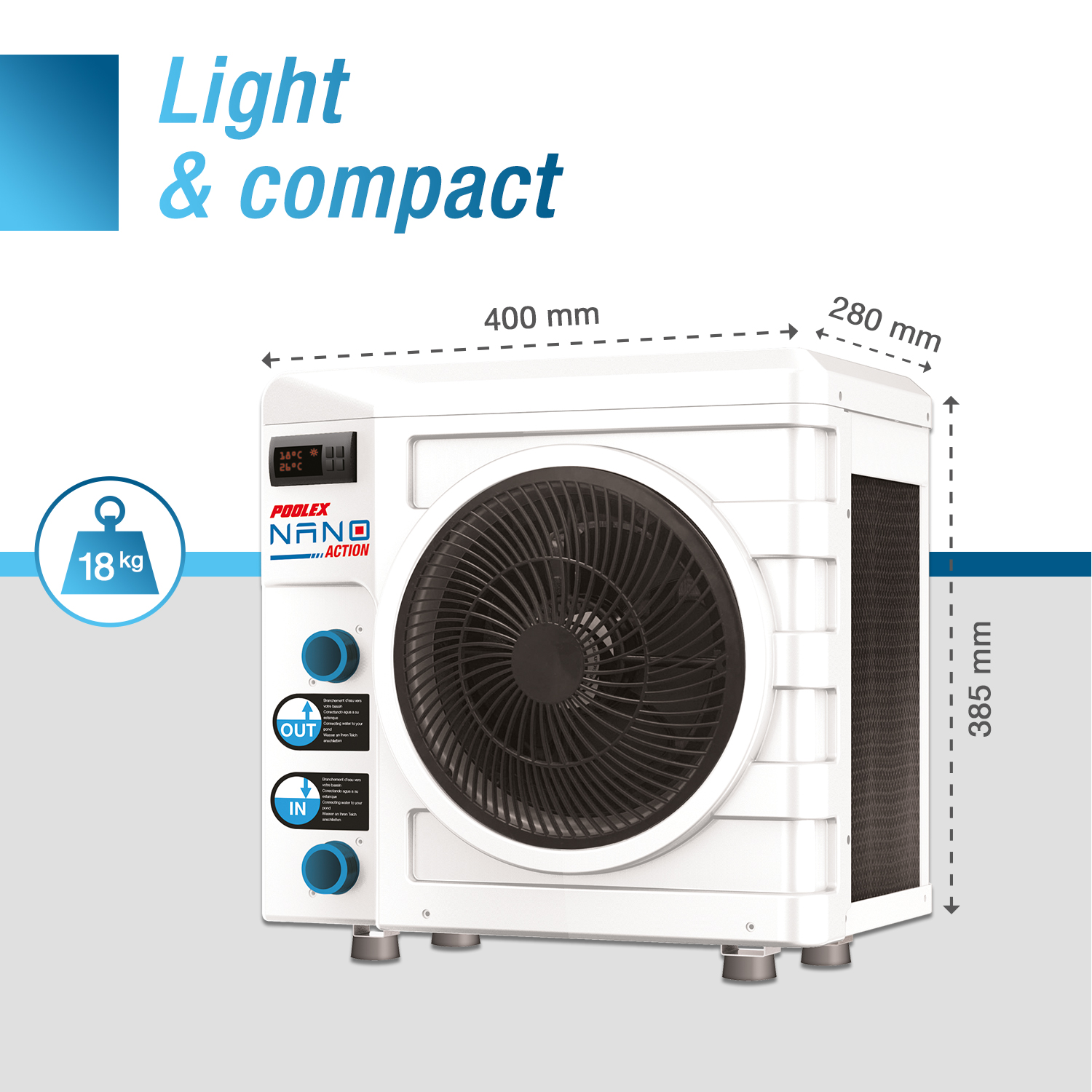

Ultra compact

As a heat pump dedicated to small pools and above-ground pools, the Nano Action knows how to be discreet with its reduced dimensions of 40 cm wide by 39 cm high. It installs next to the swimming pool and blends in with the decor.

Connects to all above ground pools

Compact and equipped with functionalities designed for ease of use, the Nano Action heat pump fits perfectly with the trend of above ground pools which can be installed and heated in just a few hours.

Model Nano Action 3 Nano Action 4 Nano Action 5

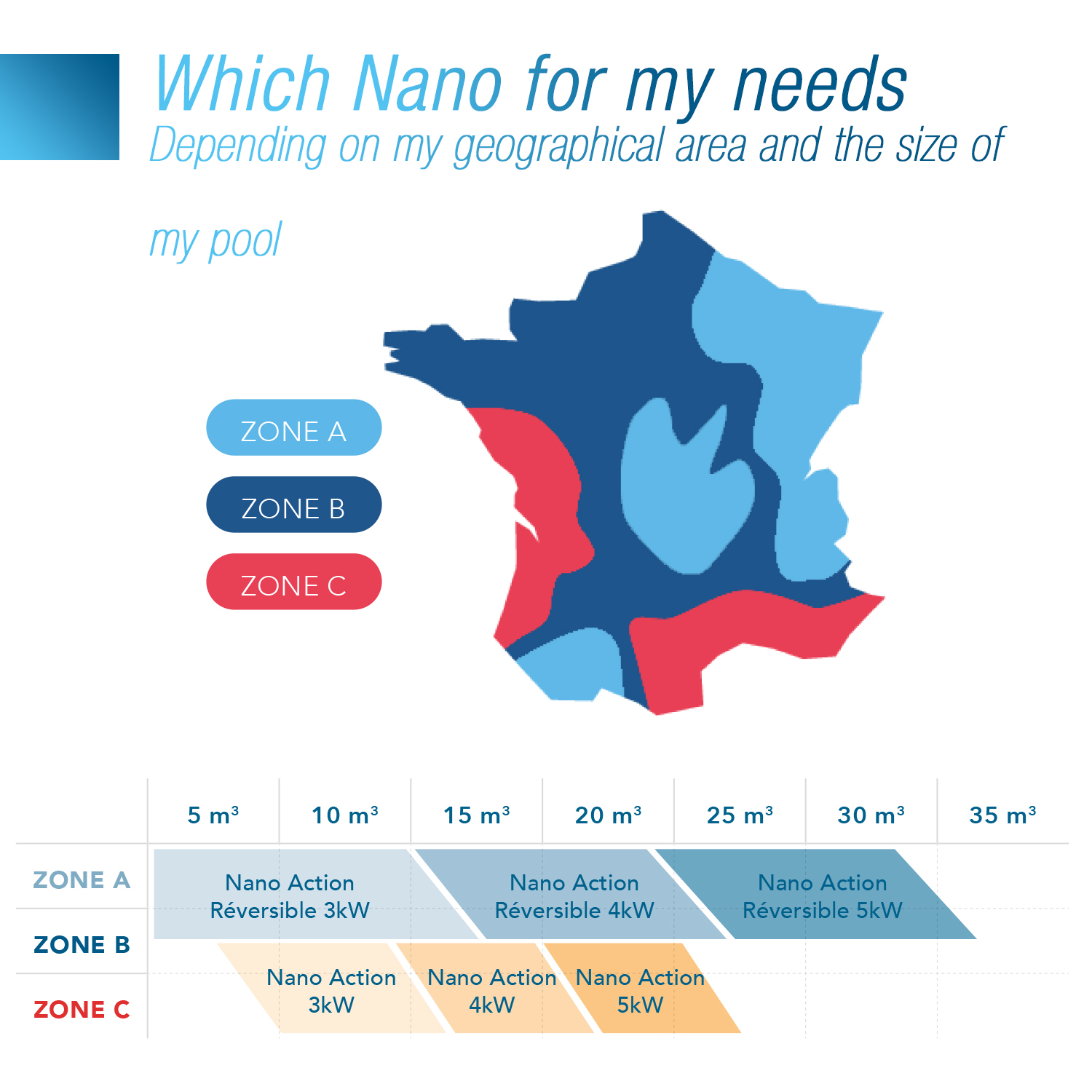

Pool volume (m3) From 10 to 21 From 15 to 28 From 20 to 35
Condition:
Air 26°C
Water 26°C
Hygro 80%		 Capacity (W) 3,010 4,200 5,010
Power Consumption (W) 540 760 910
COP 5.61 5.50 5.50
Condition*:
Air 15°C
Water 26°C
Hygro 70% 		 Capacity (W) 2,200 3,100 4,030
Power Consumption (W) 490 690 900
COP 4.51 4.50 4.50
Power supply Mono 220-240V/50Hz
Heating temperature range 15°C ~ 40°C
Operating range 8°C ~ 43°C
Max. power (W) 930 1,200 1,500
Flow (3/h) 1.3 2 2.5
Refrigerant R32
Packaging dimensions (mm) 460x370x415
Dimensions (mm) 400x280x385
Net/gross weight (kg) 18 / 20 24 / 28 26 / 30
Noise at 1 m (db(A)) <53 <55 <56
Noise at 10 m (db(A)) <32 <35 <36
Compressor type Rotary
Compressor brand Toshiba
Heat exchanger Twisted Tech© Titanium
Operation Heating
Load loss (mCE) 0.8


Heat pump


We answer your questions

Sunny side, facing north for defrosting, protecting the neighbourhood, vertical ventilation = space saving.

Coefficient of performance. Seasonal coefficient of performance.

R32 fluid. Refrigerant.

Poolex pool heat pumps.

Accessories included

Maintenance kit including multi-language user anual.

Ø 32-38 mm PVC connectors

Differential current power connector

Glossy coloured packaging
