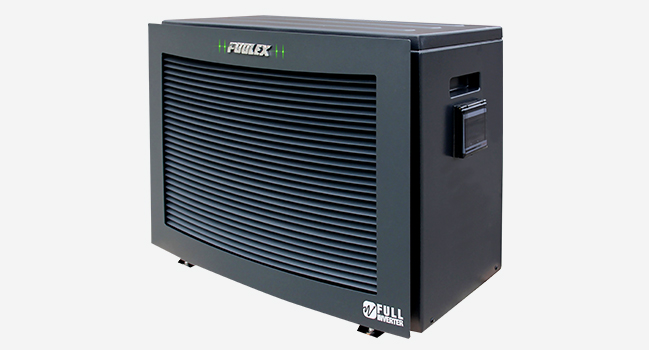

For its 2020 edition, the Poolex Jetline Premium renews itself and adopts the Full Inverter technologie wrapped up in an elegant design.
The Full Inverter technology comes with only its advantages. A considerable reduction in electricity consumption and in sound pressure, as well as an increased lifetime thanks to its soft start functionnality.
In 2020, the heat pump becomes trendy and is proudly featured by the poolside. Its thermocoated aluminium face combines elegance and high performance to provide a heat pump easy to handle on a daily basis.
The new control pannel with wired extension at 10m features the Eco Inverter and Power Inverter operating modes. The heat pump can be remotly controlled through one’s smartphone thanks to the integrated WiFi module. The extra bit to make life even easier, LED indicators have been added at the front of the heat pump to inform the user, at a glance, of the current status.
Green : the heat pump has reached setpoint temperature.
Blue : the pool is being heated.
Red : the heat pump is inactive.
The Jetline Premium Fi keeps, however, all its features that contributed to its success: its reversible function that allows it to operate down to -15°C, its automatic defrosting capacity and its titanium twisted tech heat exchanger guaranteed 15 years. Confident of the reliability of our products, the Jetline Premium Fi is guaranteed 3 years.
Popular in the domestic heating and air conditioning sectors, Full Inverter technology adjusts precisely the fan and the compressor, turning the heat pump into a smart pump.
Unlike a traditional heat pump, the Full Inverter compressor starts up gradually. If the set temperature is far from the swimming pool actual temperature, an automatic regulator boosts the heat pump’s capacity for a quick rise in temperature. During swimming season, and to maintain the set temperature, the heat pump operates at reduced power.
This constant operation means that the Full Inverter heat pump operates in a more stable way and preserves the compressor from unwanted starts and stops, resulting in energy savings of over 35%.
With its aluminium façade, the Jetline Premium Fi heat pump blends perfectly into your exterior.
Beyond the elegance it adds to the heat pump, this material, which is softer and more flexible, is highly weatherproof and reduces its noise level further.
Because a heat pump, regardless of its capacity, must be as easy to use, the Poolex Platinium can be controlled via your smartphone over Wi-Fi using a control panel located on the pump.

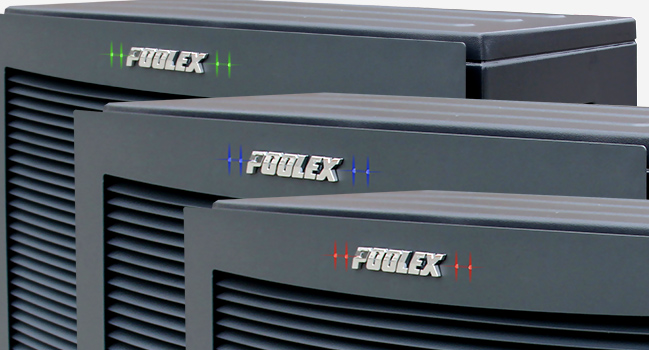

LED indicators integrated at the front of the heat pump give it a colourful style while providing the most useful technical functionality: instant visualization of the pump’s operating status.
Green : target temperature has been reached.
Blue : the pool is being heated.
Red : the heat pump is not in operation.
| Model | Jetline Premium Fi 55 | Jetline Premium Fi 75 | Jetline Premium Fi 95 | Jetline Premium Fi 125 | Jetline Premium Fi 155 | Jetline Premium Fi 155 tri | Jetline Premium Fi 210 | Jetline Premium Fi 210 tri | |
|---|---|---|---|---|---|---|---|---|---|
| Swimming pool volume (m3) | From 30 to 45 | From 40 to 55 | From 50 to 70 | From 65 to 95 | From 80 to 115 | From 80 to 115 | From 110 to 145 | From 110 to 145 | |
| Condition : Air 26°C Water 26°C Hygro 80% |
Max. power output (kW) | 7.62 | 10.21 | 13.12 | 16.52 | 21.01 | 21.43 | 28.23 | 28.42 |
| Min. power output (kW) | 1.75 | 2.34 | 3.02 | 3.79 | 4.83 | 4.98 | 6.49 | 6.53 | |
| Power consumption (kW) | 1.10~0.13 | 1.47~0.17 | 1.88~0.22 | 2.38~0.28 | 3.03~0.36 | 3.08~0.37 | 4.06~0.48 | 4.08~0.48 | |
| COP | 13.52~6.91 | 13.54~6.93 | 13.61~6.98 | 13.57~6.95 | 13.56~6.94 | 13.58~6.96 | 13.57~6.95 | 13.59~6.96 | |
| Condition*: Air 15°C Water 26°C Hygro 70% |
Max. power output (kW) | 5.74 | 7.62 | 9.73 | 12.61 | 15.74 | 15.96 | 20.68 | 20.75 |
| Min. power output (kW) | 1.33 | 1.76 | 2.23 | 2.87 | 3.59 | 3.66 | 4.77 | 4.79 | |
| Power consumption (kW) | 1.16~0.18 | 1.54~0.23 | 1.95~0.29 | 2.54~0.38 | 3.18~0.47 | 3.20~0.48 | 4.17~0.63 | 4.18~0.63 | |
| COP | 7.53~4.94 | 7.58~4.95 | 7.63~4.98 | 7.61~4.96 | 7.57~4.95 | 7.60~4.98 | 7.59~4.96 | 7.59~4.97 | |
| Power supply | Mono 230V/50Hz | Tri 380/415V | Mono 230V/50Hz | Tri 380/415V | |||||
| Heating temperature range | 15°C ~ 40°C | ||||||||
| Operating range | -15°C ~ 43°C | ||||||||
| Max. power (kW) | 2.05 | 2.85 | 3.66 | 3.93 | 4.99 | 4.55 | 5.96 | 5.96 | |
| Flow (m3/h) | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | 6.1 | 9 | 9 | |
| Refrigerant | R32 | ||||||||
| Packaging dimensions (mm) | 930x425x710 | 990x445x760 | 1146x460x862 | ||||||
| Dimensions (mm) | 864x364x592 | 925x388x642 | 1084x413x736 | 1060x485x736 | |||||
| Net/Gross weight (kg) | 49 / 59 | 52 / 62 | 55 / 65 | 58 / 68 | 63 / 73 | 79 / 92 | |||
| Noise level at 1 m(dB(A)) | <38~<47 | <39~<47 | <40~<49 | <41~<49 | <41~<50 | <42~<51 | |||
| Noise level at 10 m(dB(A)) | <20~<28 | <20~28 | <21~<30 | <22~<31 | <23~<31 | <24~33 | |||
| Compressor type | Twin rotary | ||||||||
| Compressor brand | Mitsubishi | ||||||||
| Heat exchanger | Twisted Tech© Titanium | ||||||||
| Function | Eco & Boost Inverter / Heating / Cooling | ||||||||
| Load losses (mCE) | 0.9 | 1 | 1.1 | 1.2 | |||||
Maintenance kit & User manual
Anti-vibration support kit
PVC connectors Ø50 mm 1’’½
Extension cord for wired control ( 10 m)
Condensate discharge pipe
Isothermal winter cover
Delivered on a wooden pallet
