Q-Line

Innovative design and cutting-edge technologies

for pools
up to 50 m3
operates
down to -10°
3 versions
available

The Poolex Q-Line serving a majority of swimming pool owners


The average volume in swimming pools has been reduced by half in 40 years. Today it is about 32m3. It is with that volume in mind that the Q-Line was born. With the aim of offering a product that is easy to install and use, Poolex has designed a heat pump especially for pools from 20 m3, including every best element in terms of technology, ergonomics, design and performance.

The Full Inverter technology that equips the majority of Poolex heat pumps allows for 30 to 35% energy savings over a year, mainly thanks to a compressor and a fan that function at variable speed.

Upward ventilation, which is an important space saver, makes the choice of an installation space easier.

From a user standpoint, everything has been thought to make this heat pump an easy equipment to use.

Its control panel situated at the front of the heat pump can be used as a handheld device as far as 10 meters away from the storage space or used through your smartphone using the integrated WiFi module.

LEDs at the front indicate with a colour code whether target temperature has been reached.

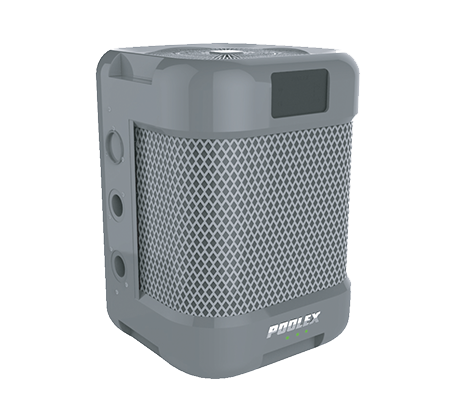

Its design in a rounded square suits any style of swimming pool and its ABS casing has the necessary resistance for a long service life.

Full Inverter Anti gel Gaz R32 Silent Efficiency WiFi

advantages

  • + Full Inverter technology Ultra silent & economical
  • + Compact vertical design
  • + Upward ventilation
  • + LED technology
  • + Anti-UV ABS façade
  • + Reversible
  • + Compatible salt treatment
warranties
Heat pump
Compressor
Titanium coil (against corrosion)

vertical ventilation

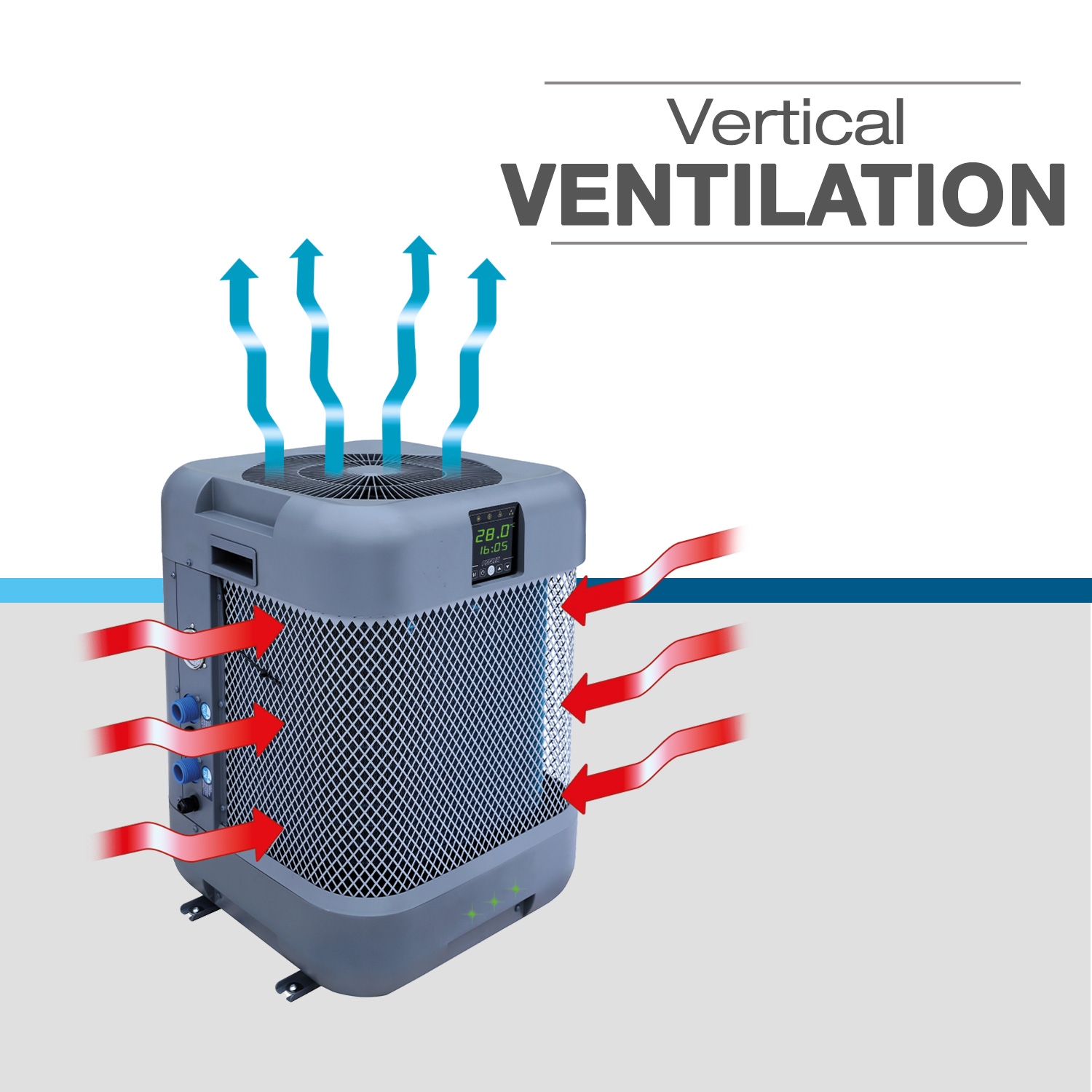

With a vertical vent, the Q-Line affords important space gain as it requires a smaller space to evacuate air. As a vertical design, the heat pump can be installed even in the smallest technical shelter.

full inverter technology +35% energy savings

Popular in the domestic heating and air conditioning sectors, Full Inverter technology adjusts precisely the fan and the compressor, turning the heat pump into a smart pump.

Unlike a traditional heat pump, the Full Inverter compressor starts up gradually. If the set temperature is far from the swimming pool actual temperature, an automatic regulator boosts the heat pump’s capacity for a quick rise in temperature. During swimming season, and to maintain the set temperature, the heat pump operates at reduced power.

This constant operation means that the Full Inverter heat pump operates in a more stable way and preserves the compressor from unwanted starts and stops, resulting in energy savings of over 35%.

anti-uv abs façade

Popular in the hardware and decoration industry, ABS has demonstrated good resistance to exterior elements without any compromises to its decorative attributes. The Q-Line and its rounded square shape suits all styles of swimming pools and garden architectures.

integrated wifi connection

Because a heat pump, regardless of its capacity, must be as easy to use, the Poolex Platinium can be controlled via your smartphone over Wi-Fi using a control panel located on the pump.

indicative led technology

LED indicators integrated at the front of the heat pump give it a colourful style while providing the most useful technical functionality: instant visualization of the pump’s operating status.

Green : target temperature has been reached.
Blue : the pool is being heated.
Red : the heat pump is not in operation.

Model Q-Line 5 Q-Line 7 Q-Line 9
Swimming pool volume (m3) 20-35m3 30-45m3 40-50m3
Condition:
Air 26°C
Water 26°C
Hygro 80%
Capacity (kW) 5.50~1.12 7.01~1.35 9.01~1.82
Power consumption (kW) 0.86~0.089 1.09~0.105 1.43~0.146
COP 12.58~6.40 12.86~6.43 12.47~6.30
Condition :
Air 15°C
Water 26°C
Hygro 80%
Capacity (kW) 4.15~0.85 5.01~1.02 7.01~1.37
Power consumption (kW) 0.92~0.132 1.11~0.145 1.57~0.217
COP 6.44~4.51 7.03~4.51 6.31~4.46
Power supply Mono 220-240V/50Hz
Heating temperature range 15°C ~ 40°C
Cooling temperature range 8°C ~ 28°C
Operating range -10°C ~ 43°C
Max. power (kW) 1.2 1.6 2
Flow (m3/h) 1.8 2.2 3.2
Refrigerant R32
Packaging dimensions (mm) 500x500x760
Dimensions (mm) 450x450x615
Net / Gross weight (kg) 32 / 40 35 / 43 37 / 45
Noise level at 1 m(dB(A)) 34~43 36~45 38~46
Noise level at 10 m(dB(A)) 19~26 19~27 20~28
Compressor Type Rotary
Compressor brand Toshiba
Hydraulic connection 32-38 mm
Heat exchanger Twisted Tech© Titanium
Function Heating / Cooling
Load losses (mCE) 1.1
heat pump configurator A simple tool to find the perfect heat pump for any type of swimming pool

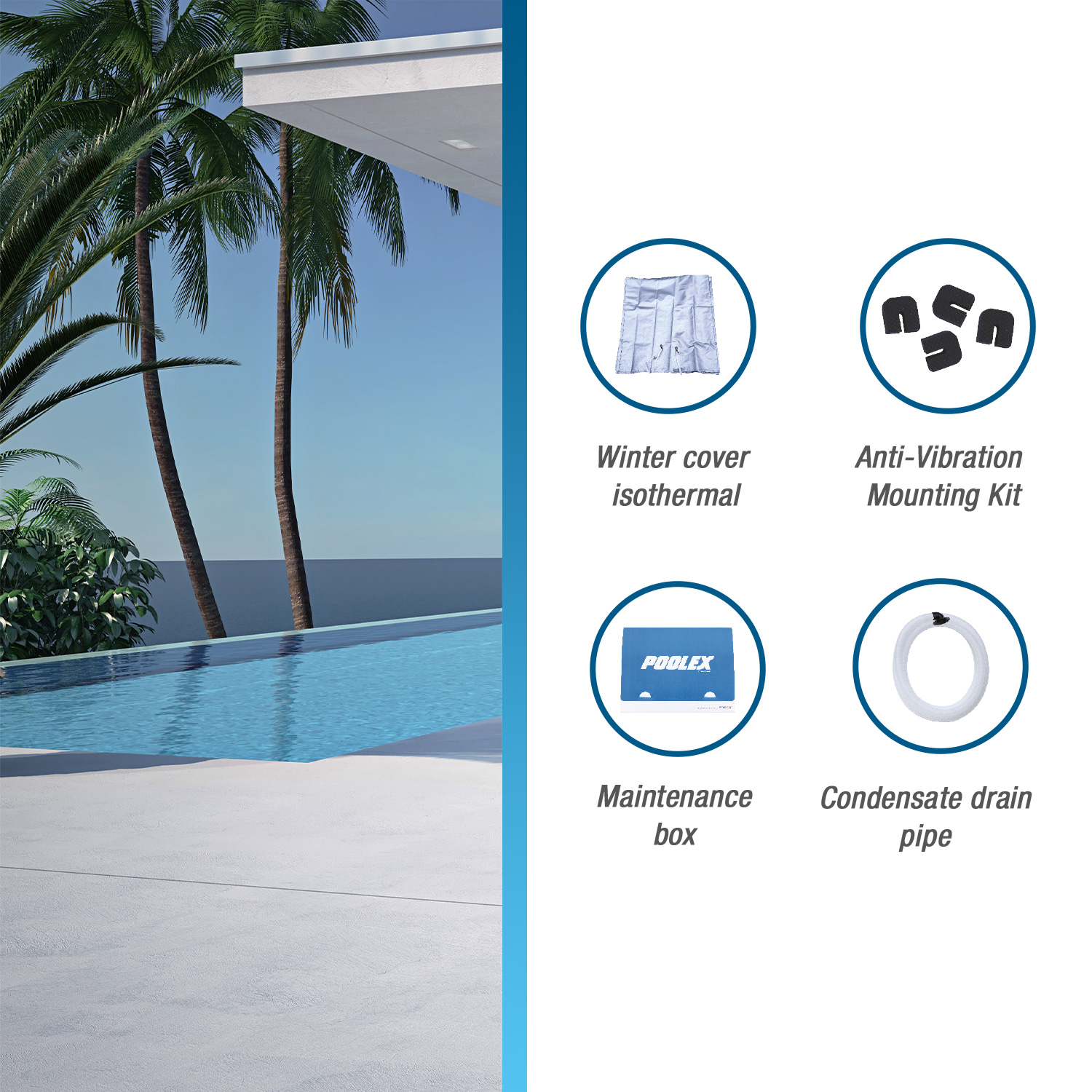

Maintenance kit including multilanguage user manual
Anti-vibration support kit

Condensate discharge pipe

Isothermal winter storage cover

Delivered on a wooden pallet
