Design, Concept & Performances

for pools
up to 115 m3
down to -10°
3 versions

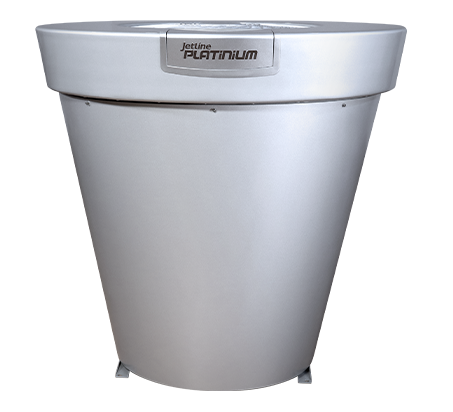

Because at Poolex, we do not believe in compromising striking design over performance, we have created the Poolex Platinium.

Poolex finally offers users a solution to their concern: how to efficiently hide one’s heat pump? And if it was instead openly featured?

Its modern design includes the latest Full Inverter technology with a guaranteed COP over 7 and absolute silence at less than 21db at 10m. As it is the case for the whole Poolex range, the Platinium also features the new, more eco-friendly and efficient R32 refrigerant.

With its three operating modes (INVERTER / ECO SILENCE / CRUISE) you can decide instantly just how you'd like your HP to operate.

Worldwide innovation: The integrated LED lights tell you straight away about the operating state of your HP:

Green: your HP has reached its target temperature
Blue: your pool is being heated
Red: action required

Warranty: As of 2019, Poolex has extended the warranty on all its compressors to 7 years for the entire premium range.

Système breveté Antigel Silent efficiency Technologie Wifi Technologie LED Gaz écologique R32 Compatible traitement au sel


  • + Full Inverter +35% energy savings
  • + Exclusive Design
  • + Ultra silent
  • + Reversible
  • + Eco Friendly R32 refrigerant
  • + Automatique defrost through cycle inversion
  • + Twisted Tech © Titanium heat exchanger
  • + Compatible with salt treatment
Heat Pump
Titanium coil (against corrosion)

full inverter technology +35% energy savings

Popular in the domestic heating and air conditioning sectors, Full Inverter technology adjusts precisely the fan and the compressor, turning the heat pump into a smart pump.

Unlike a traditional heat pump, the Full Inverter compressor starts up gradually. If the set temperature is far from the swimming pool actual temperature, an automatic regulator boosts the heat pump’s capacity for a quick rise in temperature. During swimming season, and to maintain the set temperature, the heat pump operates at reduced power.

This constant operation means that the Full Inverter heat pump operates in a more stable way and preserves the compressor from unwanted starts and stops, resulting in energy savings of over 35%.

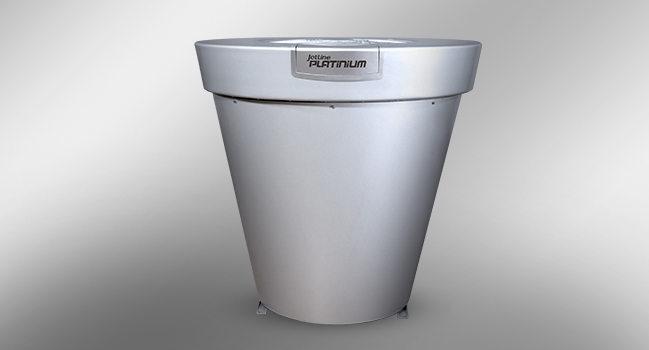

Design with aluminium casing

With its contemporary design and aluminium casing, the Poolex Platinium stands out and adds a touch of elegance by the swimming pool.

Beyond the elegance it adds to the heat pump, this material, which is softer and more flexible, is highly weatherproof and reduces its noise level further.

integrated wifi connection

Because a heat pump, regardless of its capacity, must be as easy to use, the Poolex Platinium can be controlled via your smartphone over Wi-Fi using a control panel located on the pump.

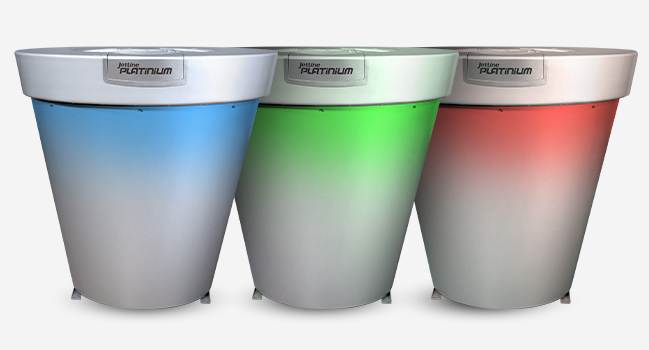

indicative led technology

LED indicators integrated at the front of the heat pump give it a colourful style while providing the most useful technical functionality: instant visualization of the pump’s operating status.

Vert : target temperature has been reached
Bleu : the pool is being heated
Rouge : the heat pump is not in operation

Model Poolex Platinium 90 Poolex Platinium 120 Poolex Platinium 155
Swimming pool volume (m3) From 45 to 65 From 65 to 85 From 80 to 115
Air 26°C
Water 26°C
Hygro 80%
Max. power output (kW) 12.2 15.1 20.9
Min. power output (kW) 2.8 4.7 5.2
Power consumption (kW) 1.8~0.2 2.2~0.3 3.2~0.5
COP 13.3~6.8 13.3~6.8 11.4~6.5
Air 15°C
Water 26°C
Hygro 70%
Max. power output (kW) 9.03 12.1 15.5
Min. power output (kW) 2.09 2.8 3.9
Power consumption (kW) 1.9~0.3 2.5~0.4 3.4~0.6
COP 7.3~4.8 7.3~4.8 6.8~4.6
Power supply Mono 230V/50Hz
Heating temperature range 15°C ~ 40°C
Operating range -15°C ~ 43°C
Max current(A) 16 20 21.86
Flow (m3/h) 3.3 4.4 6.7
Refrigerant R32
Packaging dimensions (mm) Ø 1040x1010
Dimensions (mm) Ø 935 x 845
Net/Gross weight (kg) 59 / 67 65 / 73 75 / 83
Noise level at 1m (dB(A)) <48~<40 <49~<41 <52~<42
Noise level at 10m (dB(A)) <29~<21 <31~23 <32~<24
Compressor type Rotary
Compressor brand Mitsubishi
Heat exchanger Twisted Tech© Titanium
Function EcoBooster & EcoSilence (inverter) / Heating / Cooling
Load loss (mCE) 1.1 1.1 1.1
heat pump configurator A simple tool to find the perfect heat pump for any type of swimming pool
Maintenance kit including multi-language user manual
Anti-vibration support kit
PVC connectors 50mm 1" ½
Extension cord for wired control (10m)
Condensate discharge pipe
Isothermal winter storage cover
Delivered on a wooden pallet
